Technology and Drowings
This page brings together dimension and drawing references for CHENLU’s main trailer categories, so engineers and buyers can quickly check typical platform length, structure and configuration before requesting a formal drawing for their specific order.

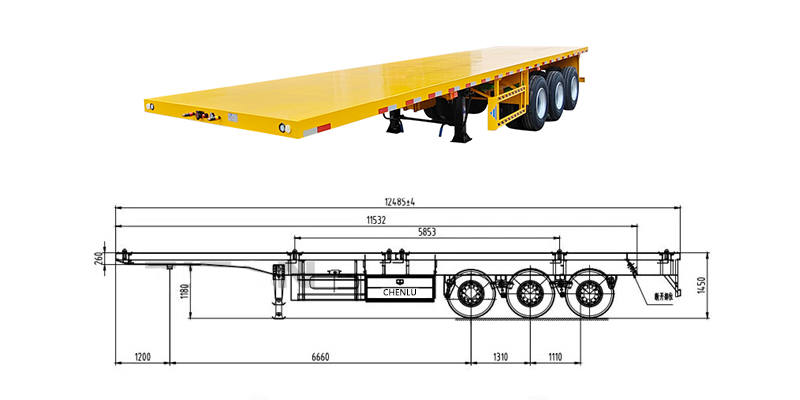

Flatbed Semi Trailer Dimensions and Drawings
A flatbed semi trailer is an open, flat-deck platform designed to move containers and general bulk cargo between ports, terminals and inland destinations. It is commonly used for container transport, highway freight and multimodal logistics.
Bulk Cement Tanker Trailer Dimensions and Drawings
A container chassis trailer is a lightweight frame designed to carry shipping containers. It can be configured according to container size, axle number, suspension system and local road conditions.
Please contact CHENLU for a suitable container chassis configuration and technical drawing.

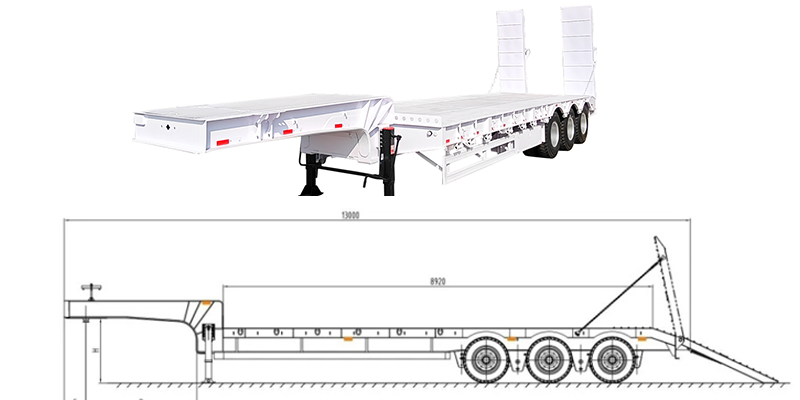

Low Bed Semi Trailer Dimensions and Drawings
A low bed semi trailer uses a dropped-frame design to lower the cargo platform. This improves stability and allows taller heavy equipment to stay within legal height limits.

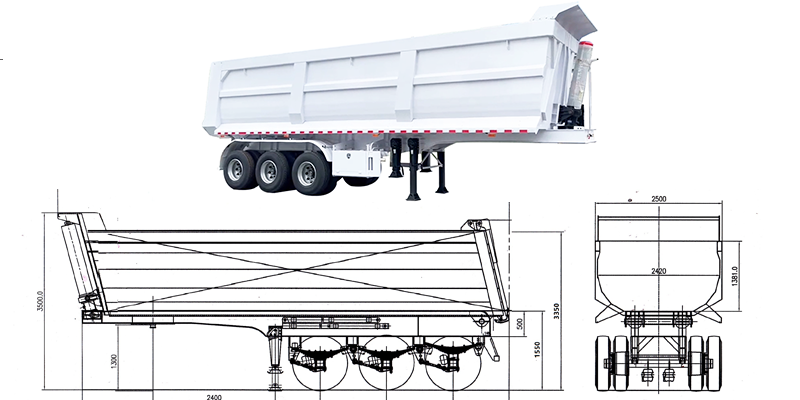

Tipper Semi Trailer Dimensions and Drawings
CHENLU tipper semi trailers use a hydraulic lifting body to discharge bulk materials efficiently. The trailer body and suspension can be configured according to cargo type, loading capacity and unloading requirements.

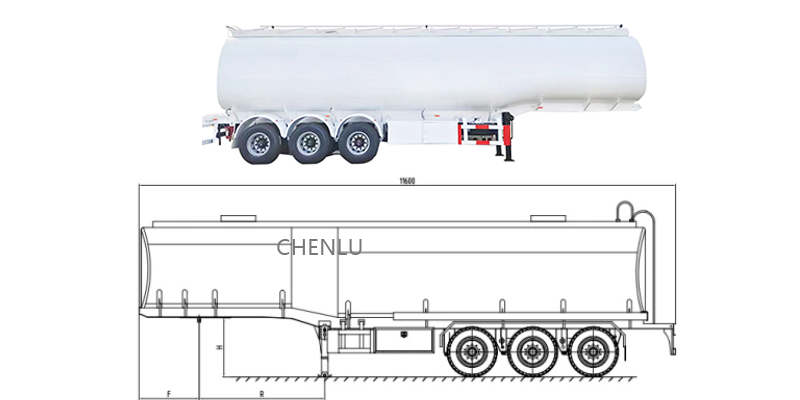

Fuel Tanker Trailer Dimensions and Drawings
CHENLU fuel tanker trailers can be built in carbon steel, stainless steel or aluminium alloy depending on the cargo and operating environment. Capacity, axle layout and safety equipment can be customized for different markets.
